| Main technical parameters of the product | |||

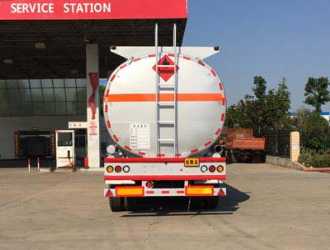

| Product Name: | CLW9406GYYA type oil tanker semi-trailer | External dimensions: | 12500X2500X3850(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/18(°) |
| Rated weight: | 29800 (Kg) | Front overhang and rear overhang: | -/1730(mm) |
| Curb weight: | 10200 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | The tractor unit is suitable for towing semi-trailers transporting dangerous goods. Different styles of mudguards are available as options. Transport medium: gasoline. The density of the medium is 0.7 tons per cubic meter. Category number: 3 Effective tank volume: 44.6 cubic meters. Tank dimensions (length × major axis × minor axis) (mm): Front half is 3700x2500x1960. The rear section measures 8350x2500x2160 mm. Protective material: Q235A carbon steel. Connection method: The left and right sides and the lower rear guard are all connected by welding. Rear guard section dimensions (mm): 140×50 Rear protection ground clearance (mm): 530 ABS manufacturer: Guangzhou Kemi Automotive Braking Technology Development Co., Ltd. ABS model: CM2XL-4S/2K (4S/2M). |
||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | (mm) |
| Wheelbase: | 6650+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8,-/4/4/4 | |
| Number of tires: | 12 | Axle load: | -/24000 (three-axis group) |
| Tire specifications: | 11.00R20
12PR 12R22.5 12PR |
||
| Emission standards: | |||
