| Main technical parameters of the product | |||

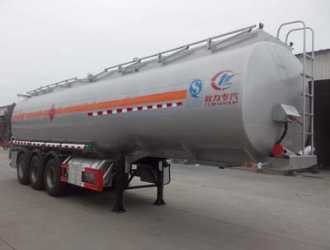

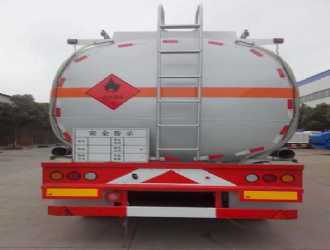

| Product Name: | CLW9409GRYA Flammable Liquid Tank Transport Semi-Trailer | External dimensions: | 11000X2500X3600(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/18(°) |
| Rated weight: | 30500 (Kg) | Front overhang and rear overhang: | -/1480(mm) |
| Curb weight: | 9500 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | Use a tractor unit suitable for towing semi-trailers transporting dangerous goods. Effective tank volume: 42 cubic meters; The transport media are respectively: Ethanol 760 kg/m³ Butyl ether 750 kg/m³ Triethylamine 730 kg/m³ Ether / 713 kg/m³; Category number: 3 Tank dimensions (mm): 10600×2500×2000 (tank body is gooseneck type) (Front-end height is 1800); Protective material: Q235A carbon steel Connection method: The left and right sides and the lower rear guard are all connected by welding. Rear guard section dimensions (mm): 120×50 Rear protection ground clearance (mm): 520. ABS manufacturer: Guangzhou Kemi Automotive. Braking Technology Development Co., Ltd. ABS model: CM2XL-4S/2K(4S/2M). |
||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | -(mm) |
| Wheelbase: | 5200+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8,-/4/4/4,-/-/-/- | |
| Number of tires: | 8 | Axle load: | -/24000 (three-axis group) |
| Tire specifications: | 11.00R20
12PR 12R22.5 12PR |
||
| Emission standards: | |||
