| Main technical parameters of the product | |||

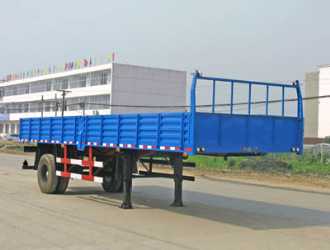

| Product Name: | CLW9130 semi-trailer | External dimensions: | 8450X2500X2520(mm) |
| Chassis model: | Cargo box dimensions: | 8250X2300X550 (mm) | |
| Total mass: | 12850 (Kg) | Approach/departure angle: | -/20(°) |
| Rated weight: | 10000 (Kg) | Front overhang and rear overhang: | -/1750(mm) |
| Curb weight: | 2850 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | Protective material: Q235 carbon steel; Connection method: Welded connection is used for the left and right sides and the lower rear protection; Rear protection cross-section dimensions (mm): 100×50×5; Rear protection ground clearance (mm): 540. | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | Front track: | -(mm) | |
| Wheelbase: | 5900 | Rear track: | 1840 (mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/10 | |
| Number of tires: | 4 | Axle load: | -/7520 |
| Tire specifications: | 9.00-20 12PR,9.00-20 14PR,9.00R20 10PR,9.00R20 12PR,9.00R20 14PR | ||
| Emission standards: | |||
| Engine parameters | |||
| engine: | Engine manufacturers: | Displacement (ml): | Power (kW): |
| Special vehicle performance | |||
|
Protective material: Q235 carbon steel; Connection method: Welded connection is used for the left and right sides and the lower rear protection; Rear protection cross-section dimensions (mm): 100×50×5; Rear protection ground clearance (mm): 540.
|
|||
Get a customized quote for the 10 m³ rear loader garbage truck or discuss your specific requirements with our engineering team.
