| Main technical parameters of the product | |||

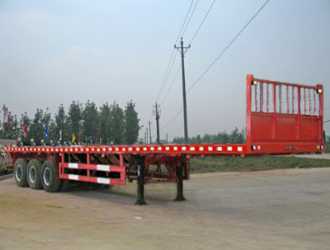

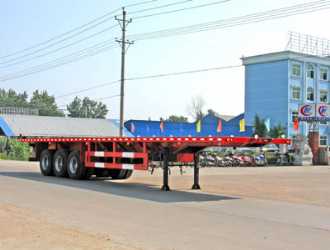

| Product Name: | CLW9400P Flatbed Semi-Trailer | External dimensions: | 13000X2500X1500, 2820 (mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/14(°) |
| Rated weight: | 32500 (Kg) | Front overhang and rear overhang: | -/2170(mm) |
| Curb weight: | 7500 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | The front side panel is optional; when equipped, the semi-trailer height is 2820mm. Protective material: Q235 carbon steel; connection method: welded connections for both sides and the lower rear; rear protection cross-section dimensions (mm): 180×50×5; rear protection ground clearance (mm): 520. ABS manufacturer: Hander International Trading (Shanghai) Co., Ltd.; ABS model: 4S/3M. | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | Front track: | -(mm) | |
| Wheelbase: | 6950+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8 | |
| Number of tires: | 12 | Axle load: | -/24000 (parallel three-axis mounting) |
| Tire specifications: | 11.00-20 12PR, 11.00R20 12PR | ||
| Emission standards: | |||
| Engine parameters | |||
| engine: | Engine manufacturers: | Displacement (ml): | Power (kW): |
| Special vehicle performance | |||
|
The front side panel is optional; when equipped, the semi-trailer height is 2820mm. Protective material: Q235 carbon steel; connection method: welded connections for both sides and the lower rear; rear protection cross-section dimensions (mm): 180×50×5; rear protection ground clearance (mm): 520. ABS manufacturer: Hander International Trading (Shanghai) Co., Ltd.; ABS model: 4S/3M.
|
|||
