| Main technical parameters of the product | |||

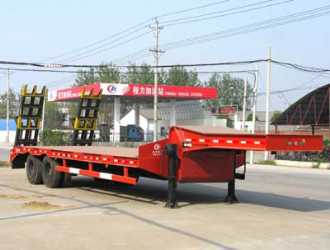

| Product Name: | CLW9350TDP low flatbed semi-trailer | External dimensions: | 12000,11500X3000X2900,1650(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 35000 (Kg) | Approach/departure angle: | -/15(°) |
| Rated weight: | 28800 (Kg) | Front overhang and rear overhang: | -/1860, -/1360(mm) |
| Curb weight: | 6200 (Kg) | Maximum speed: | (km/h) |

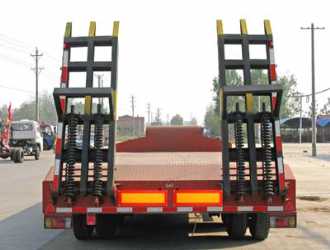

| Vehicle Notes: | The loading platform's height from the ground is 1050mm; this vehicle is only for transporting non-detachable objects; the rear ladder is optional, and the vehicle height is 1650mm without it. Protective material: Q235 carbon steel; connection method: the left and right side guards are welded together, the rear guard is an integral structure with the vehicle, and the rear guard's ground clearance (mm): 530. ABS manufacturer: Hander International Trading (Shanghai) Co., Ltd., ABS model: 4S/3M. | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | Front track: | -(mm) | |
| Wheelbase: | 8200+1320 | Rear track: | 2180/2180(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8,-/10/10 | |
| Number of tires: | 8 | Axle load: | -/18000 (two axes mounted in parallel) |
| Tire specifications: | 8.25R20 16PR | ||
| Emission standards: | |||
| Engine parameters | |||
| engine: | Engine manufacturers: | Displacement (ml): | Power (kW): |
| Other materials | |||
|
The loading platform's height from the ground is 1050mm; this vehicle is only for transporting non-detachable objects; the rear ladder is optional, and the vehicle height is 1650mm without it. Protective material: Q235 carbon steel; connection method: the left and right side guards are welded together, the rear guard is an integral structure with the vehicle, and the rear guard's ground clearance (mm): 530. ABS manufacturer: Hander International Trading (Shanghai) Co., Ltd., ABS model: 4S/3M.
|
|||
