| Main technical parameters of the product | |||

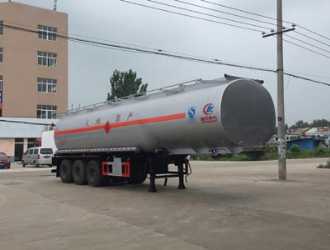

| Product Name: | CLW9409GYYA type oil tanker semi-trailer | External dimensions: | 10100X2500X3600(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/16(°) |
| Rated weight: | 30800 (Kg) | Front overhang and rear overhang: | -/1480(mm) |
| Curb weight: | 9200 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | The tractor unit is suitable for towing semi-trailers transporting dangerous goods. Different styles of mudguards are available as options. Transport medium: diesel fuel. kerosene, gasoline, The media densities are 0.83 tons/cubic meter. 0.80 tons/cubic meter 0.75 tons/cubic meter; Category number: 3 Effective tank volume: 38.9 cubic meters. Tank dimensions (length × major axis × minor axis) (mm): Front half is 3700x2500x1960. The rear section measures 6050x2500x2160 mm. Protective material: Q235A carbon steel. Connection method: The left and right sides and the lower rear guard are all connected by welding. Rear guard section dimensions (mm): 140×50 Rear protection ground clearance (mm): 420. ABS manufacturer/model: Guangzhou Kemi Automotive Braking Technology Development Co., Ltd./CM2XL-4S/2K(4S/2M). Liangshan Shunanda Automotive Technology Co., Ltd. / SAD-ABS4S/2M Liangshan Hainan Electronic Technology Development Co., Ltd. / HNABS-4S/2M. |
||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | (mm) |
| Wheelbase: | 4600+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8,-/4/4/4,-/-/-/- | |
| Number of tires: | 12 | Axle load: | -/24000 (three-axis group) |
| Tire specifications: | 11.00R20
12PR 12R22.5 12PR |
||
| Emission standards: | |||
