| Main technical parameters of the product | |||

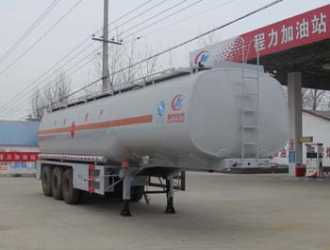

| Product Name: | CLW9400GYYA oil tanker semi-trailer | External dimensions: | 11400X2500X3750(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/20(°) |
| Rated weight: | 29700 (Kg) | Front overhang and rear overhang: | -/1500(mm) |
| Curb weight: | 10300 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | Transport medium: diesel, gasoline, kerosene; medium densities: 0.83 tons/cubic meter, 0.76 tons/cubic meter, 0.80 tons/cubic meter respectively; class item number: 3; effective tank volume: 37.5 cubic meters; tank dimensions (mm): front section length 3700, long axis 2450, short axis 1740; rear section length 7200, long axis 2450, short axis 1980. This vehicle is equipped with optional rubber suspension. It uses a tractor suitable for towing semi-trailers transporting dangerous goods. Protective material: Q235A; connection method: left and right sides and lower rear protection are all welded connections; rear protection cross-section dimensions (mm): 145×60; rear protection ground clearance (mm): 530. ABS manufacturer: Guangzhou Kemi Automotive Braking Technology Development Co., Ltd.; ABS model: CM2XL-4S/2K (4S/2M). | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | -(mm) |
| Wheelbase: | 6000+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8,-/4/4/4,-/-/-/- | |
| Number of tires: | 12 | Axle load: | -/24000 (parallel three-axis mounting) |
| Tire specifications: | 11.00R20 12PR, 12R22.5 12PR | ||
| Emission standards: | |||
