| Main technical parameters of the product | |||

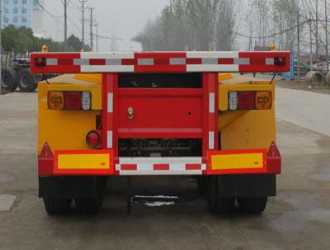

| Product Name: | CLW9401TWY type dangerous goods tank container skeleton semi-trailer | External dimensions: | 9750X2490X1640(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/20(°) |
| Rated weight: | 34500 (Kg) | Front overhang and rear overhang: | -/1320(mm) |
| Curb weight: | 5500 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | The total frame height at the towing pin is 90mm. It is designed for transporting 30-foot containers or container tanks and uses a tractor suitable for towing semi-trailers transporting dangerous goods. Protective material: Q235A carbon steel; connection method: welded connections for both sides and the lower rear; rear protective section dimensions (mm): 135×80; rear protective ground clearance (mm): 520. ABS manufacturer: Guangzhou Kemi Automotive Braking Technology Development Co., Ltd.; ABS model: CM2XL-4S/2K (4S/2M). | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | (mm) |
| Wheelbase: | 4450+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8,-/10/10/10 | |
| Number of tires: | 12 | Axle load: | -/24000 (parallel three-axis mounting) |
| Tire specifications: | 11.00R20 12PR, 12R22.5 12PR | ||
| Emission standards: | |||
