| Main technical parameters of the product | |||

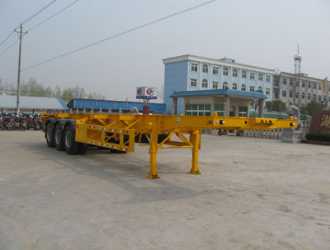

| Product Name: | CLW9400TJZG type container semi-trailer | External dimensions: | 12400X2480X1510(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 39600 (Kg) | Approach/departure angle: | -/13.5(°) |
| Rated weight: | 33100 (Kg) | Front overhang and rear overhang: | -/1560(mm) |
| Curb weight: | 6500 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | This vehicle is used to transport 40-foot containers or frame-type container tanks. The total height of the chassis at the towing pin is 85mm. Protective material: Q235A carbon steel; connection method: welded connections for the left and right sides and lower rear; rear protective cross-section dimensions (mm): 210×50×5; rear protective ground clearance (mm): 480. ABS manufacturer: Hander International Trading (Shanghai) Co., Ltd.; ABS model: 4S/3M. | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | Front track: | (mm) | |
| Wheelbase: | 7470+1360+1360 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8 | |
| Number of tires: | 12 | Axle load: | -/23550 (parallel three-axis mounting) |
| Tire specifications: | 11.00-20 12PR | ||
| Emission standards: | |||
| Special vehicle performance | |||
|
This vehicle is used to transport 40-foot containers or frame-type container tanks. The total height of the chassis at the towing pin is 85mm. Protective material: Q235A carbon steel; connection method: welded connections for the left and right sides and lower rear; rear protective cross-section dimensions (mm): 210×50×5; rear protective ground clearance (mm): 480. ABS manufacturer: Hander International Trading (Shanghai) Co., Ltd.; ABS model: 4S/3M.
|
|||
