| Main technical parameters of the product | |||

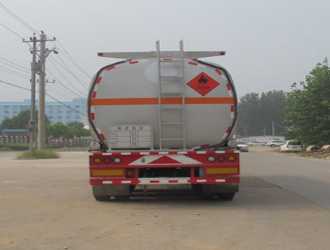

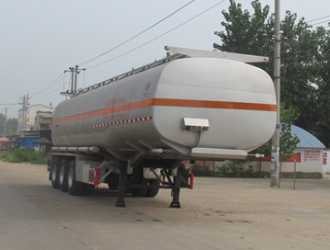

| Product Name: | CLW9407GYY oil tanker semi-trailer | External dimensions: | 11290X2500X3740(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/18(°) |
| Rated weight: | 29800 (Kg) | Front overhang and rear overhang: | -/1525(mm) |
| Curb weight: | 10200 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | Effective tank volume: 43.3 cubic meters; Medium: Gasoline; Density: 720 kg/m³; Class: 3; Tank dimensions (mm): Front end (length × major axis × minor axis): 3650 × 2500 × 1950; Rear end (length × major axis × axle): 7150 × 2500 × 2170. A tractor with a speed limiter is used. Protective material: Q235A carbon steel; Connection method: Welded connection for left and right sides and lower rear; Rear protection cross-section dimensions (mm): 140 × 50; Rear protection ground clearance (mm): 500. ABS manufacturer: WABCO Automotive Control Systems (China) Co., Ltd.; ABS model: 400500XXX0. | ||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | (mm) |
| Wheelbase: | 5800+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8 | |
| Number of tires: | 12 | Axle load: | -/24000 (parallel three-axis mounting) |
| Tire specifications: | 12R22.5 12PR, 11.00R20 12PR | ||
| Emission standards: | |||
