| Main technical parameters of the product | |||

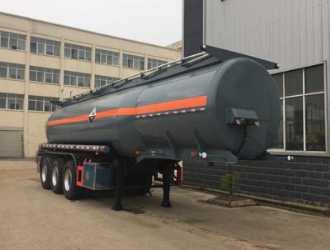

| Product Name: | CLW9408GFWB Type Tank Semi-Trailer for Transporting Corrosive Goods | External dimensions: | 9900X2500X3800(mm) |
| Chassis model: | Cargo box dimensions: | XX (mm) | |
| Total mass: | 40000 (Kg) | Approach/departure angle: | -/19(°) |
| Rated weight: | 31000, 31800 (Kg) | Front overhang and rear overhang: | -/1450(mm) |
| Curb weight: | 9000, 8200 (Kg) | Maximum speed: | (km/h) |
| Vehicle Notes: | A tractor unit suitable for towing semi-trailers carrying hazardous materials is used. Different styles of mudguards are available as options. Optional toolbox location. Optional plastic lining. Shipping category number: 8. Effective tank volume: 26.9 cubic meters. Tank dimensions: Length 9400mm Diameter (front/rear): 1950mm/2150mm. Protective material: Q235A carbon steel. Connection method: The left and right sides and the lower rear guard are all connected by welding. Rear guard section dimensions (mm): 140×50 Rear protection ground clearance (mm): 500. ABS manufacturer/model: Liangshan Shun'anda Automotive Technology Co., Ltd./SAD-ABS4S/2M. Liangshan Hainan Electronic Technology Development Co., Ltd. / HNABS-4S/2M. Type of vehicle for transporting dangerous goods (AT type vehicle). |
||
| Chassis parameters | |||
| Chassis model: | Fuel type: | ||
| Number of axes: | 3 | Front track: | -(mm) |
| Wheelbase: | 4600+1310+1310 | Rear track: | 1840/1840/1840(mm) |
| Number of passengers in the driver's cab: | Number of leaf springs: | -/8/8/8,-/4/4/4,-/-/-/- | |
| Number of tires: | 12 | Axle load: | -/24000 (three-axis group) |
| Tire specifications: | 11.00R20
12PR 12R22.5 12PR |
||
| Emission standards: | |||
